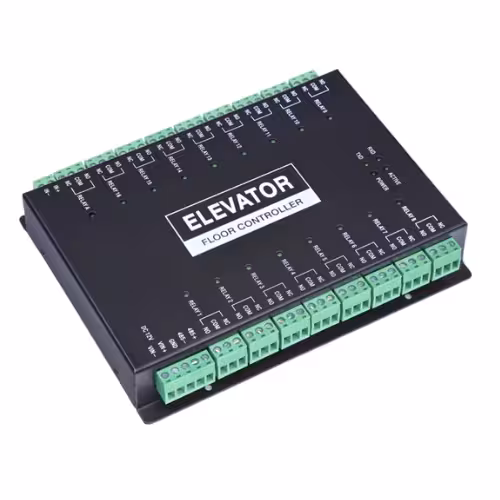

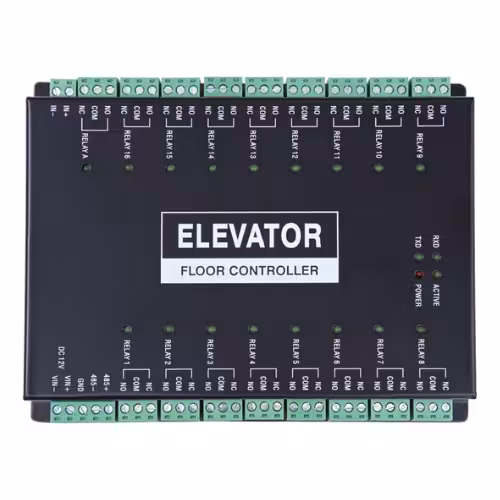

Chiyu BF-333 Floor and Elevator Controller

Chiyu BF 333 is a 16 Output relay box for floor security controller.

Chiyu BF-333 Floor and Elevator Controller provide a higher security level for the elevator. Built-in Self-detection device to avoid hand-up. Provide emergency mode contact to eliminate all floor access control.

Description

Chiyu BF-333 Floor and Elevator Controller:

Chiyu BF-333 is specially designed for Elevators and Floor security and can be bypassed in case of emergency situations.

Features:

  • Built-in Self-detection device to avoid hand-up.
  • Provide emergency mode contact to eliminate all floor access control.
  • Function with Chiyu door controller only, compatible with SEMAC-S3.
  • No limitation for user control, you can just use card numbers and group settings to control the floor, that way will be much easier for system integration.
  • Built-in 16 relay Output. When there are over 16 floors, you can connect more BF-333 to extend the floor control number. You can connect 8 pcs of BF-333 to control 128 floors at the most.
Technical Specifications

PRODUCT SPECIFICATION:

  • Communication Interface: RS-485
  • Relay Output: 16 (1A /30V DC)
  • Emergency Input Contact: Yes, eliminate all of floor access control.
  • Watch Dog: System halt prevention
  • Operation Power: 9 ~ 24V DC
  • Rated Current: 800 mA
  • Operation Temperature: 0°C ~ 55°C
  • Dimension: 179 x 141 x 29 mm
  • Weight: 650 g
