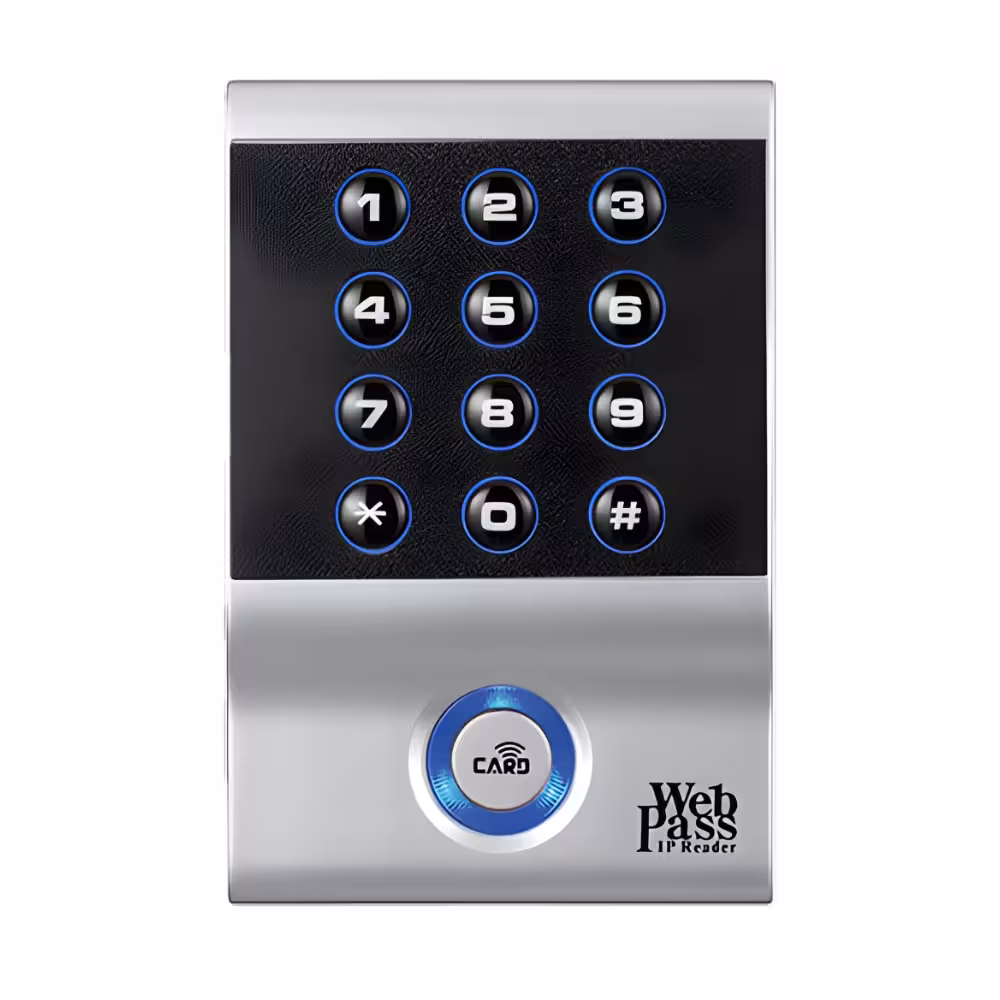

Chiyu Web-Pass Access Control System
WebPass IP54 Access Control Device can be installed as Standalone Access control for indoor as well as outdoors with an optional POE function and a built-in Web based Server
Chiyu WebPass IP54 Access Control System:
Introducing the Chiyu Web-Pass IP54 rated Weatherproof Control system in Pakistan, a cutting-edge solution offered by Intellitech Business Solution in Pakistan. Designed to meet the growing demand for advanced access control systems, this state-of-the-art solution ensures efficient and secure entry management. With its innovative features and robust technology, the Chiyu Web-Pass IP54 rated Weatherproof Access Control System is the ideal choice for businesses and organizations in Karachi, Lahore, and Islamabad seeking reliable access control solutions. Experience enhanced security and streamline your operations with this industry-leading access control system in Pakistan. Trust Intellitech Business Solution to provide you with top-notch products and unmatched customer support. Discover the power of effective access control today.
WebPass Access Control System is a proximity IP54-rated Standalone Access Control device, PoE option module, and IP65-rated weatherproof RFID access controller.
WebPass Access Controller, which can be connected with more than one Webpass reader over a single intranet (LAN). SOMAC is a proprietary access control management software to manage single or multiple units of Webpass IP Readers in an RFID access control system.
Optional Poe function (Power over Ethernet).
Frequenc EM / Mifare / HID:
- IP54 Outdoor Weatherproof Access Control.
- Multiple card types support (EM / Mifare standard).
- PoE (Power over Ethernet) function support (option).
- Web-Based Access Management(Inbuilt HTT web server for management)
- Proprietary software provides advanced management.
- Outdoors in Commercial Places
- Supports Anti-pass Back, one-time payment card expiry for Paid Parking, Paid Toilets or Paid Entrance.
PRODUCT SPECIFICATION:
- Verification Mode: Card / Password
- Software Application: SoMac
- Card Capacity: 20,000 (50,000 extendable)
- Communications: TCP/IP, Wiegand/RS485
- DIO Support: DI: 3 / DO: 1
- Inbuilt Relays (Max. power loading): Door Lock / Ring (120VAC, 0.5A /
30VDC, 1A)
- Power Over Ethernet: Yes (Option) (Conjunction box required)
- Option Accessories: Conjunction box (Wiring / PoE)
- System Log: 1,536 entries
- Entry Log: 65,535 entries
- Time Set / Time Zone / Group: 255 / 120 / 255 Sets
- Holiday: Yes
- Remote Control / Event Handle: Yes / Yes
- Fast Registry: Yes
- Ant-Pass Back / Anti Duress: Yes / Yes
- Power Consumption: 400mA ± 5%
- Power Requirement: 9 ~ 24VDC / 1A
- Operation Temperature: 0°C ~ 65°C
- Operation Humidity: 5% ~ 80% RH
- Dimension / Weight: 120 x 80 x 28mm / 150g
