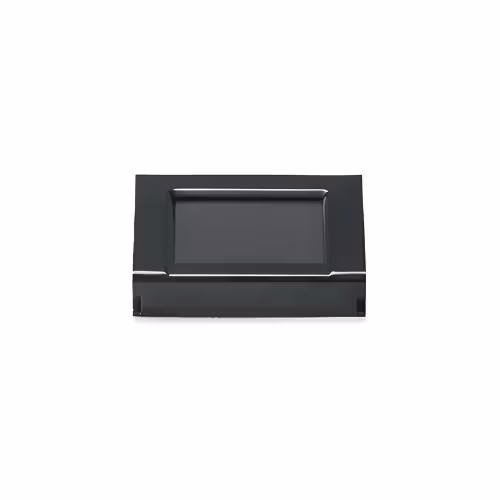

Sherlock FAP-45 Dual and Rollup
Integrated Biometrics’ Sherlock is a FAP-45 PIV FBI-Certified Biometric Fingerprint Scanner having the capability of capturing and verification of Single and Dual fingers along with Roll-up fingers which is required by many countries around the world
Description

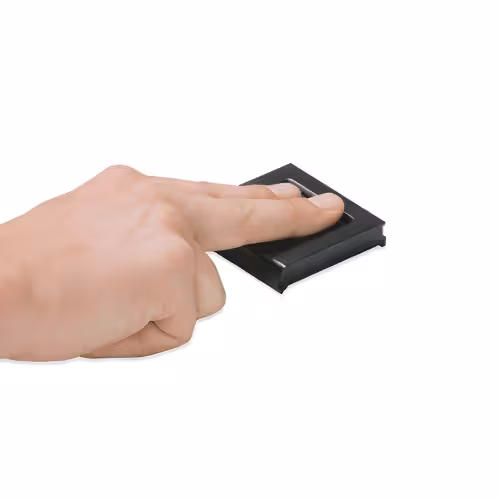

Sherlock is a FAP-45 PIV FBI-certified scanner that enables single, dual, and Rollup 10-finger enrollment and verification from a device that weighs just 55g / 1.94oz. Designed for both embedded and standalone applications, Sherlock combines performance and durability with the compact size and low power consumption that mobile identity management applications demand.
Faster
- Rapid dry finger captureNo need to clean latent prints in high-volume situationsEasy integration via single SDK for all Integrated Biometrics FBI-certified products
Better
- Unaffected by extreme temperatures, direct sunlight, or bright artificial lightsCompact, lightweight, and ruggedRejects common spoofing attacksEmits no bright lights during scans
Meets or exceeds US military durability specifications
Smarter
- Competitive pricingExtremely low power consumptionEliminates consumables (silicone membranes or cleaning tape)Lower maintenance costs
Technical Specifications
PRODUCT SPECIFICATION:
- OS Support & System Requirements OS Support
Windows Desktop Editions 7, 8, 10, 11
Linux Kernel 4.0 or newer (32/64 bit, ARMv6, ARMv7) - Ubuntu 18.04, 20.04 or newer Debian 10, 11, or newer
Android 10, 11, 12 - CPU x86 and x64 | 2.0GHz or higher ARM | 1.0 GHz or higher
- Memory 512MB or higher
- Windows Linux Android
Images & Capture
Sensor Type
LES - Camera TFT
- Resolution 500 ppi
- Grayscale 256 grayscale dynamic range
- Image Size 800 x 750 pixels
- Supported Image Formats RAW, JPEG2000, BMP, PNG, WSQ (FBI-approved)
- Encryption N/A
- FBI / Image Certifications Mobile ID IQS FAP 45, PIV, GSA FIPS 201, FBI Appendix F
- Speed Min frame rate > 10fps
- API Interface Capture single finger direct/rolls, multi-device/muti-thread support
- Quality Scoring NFIQ v1 supported on all OSes and NFIQ2 for Windows
- Platen Size 42 mm x 39 mm / 1.65” x 1.53”
- Sensing Area] 40 mm x 38 mm / 1.6” x 1.5”
- Scanner Assembly Dimensions 65.2 mm x 59.5 mm x 14.2 mm / 2.57″ x 2.34” x 0.56”
- Sherlock Size Power & Connectors Interface
USB 2.0 - Power Source USB Host
- USB Voltage Level 4.75V to 5.25V
- Conformance & Certifications USB Certification
USB-IF USB.ORG - FCC/CE Comformance FCC Part15 (per ANSI C62.4:2003) Class A, CSA ICES-003 Class A, CE Emissions:EN55022:2006 Class A, CE Immunity EN 55024:1998/A1:2001/A2:2003, IEC61000-4-2
- Air Discharge / Contact Discharge In compliance with IEC 61000-4-2
- Equipment Safety IEC 62368-1
- Hazardous Material RoHS Directive 2002/95/EC TSCA* Proposition 65*
Canada Prohibition*
*Compliant on SH21100-000 - Vibration Test
Per Mil-STD-810F (Method 514.5), Category 24, Flg.514.5C-17 - Compliance/Certifications
Fingerprint Template Output Formats
ISO_19794_2_2005/2011, ISO_19794_4_2005/2011
ANSI_INCITS_378_2004/ANSI_INCITS_381_2004
500 PPI fingerprint capture supporting rolls and flats
ISO 9001:2015
MOSIP L1 Compliant
MOSIP Compliance - Weight & Dimensions
Product Weight < 55 grams / 0.12 lbs
