ZKTeco TS1000 Plus Series Tripod Turnstile
Product Features
- Brand: ZKTeco
- Model: TS1000 Plus Series
- Device Type: Tripod turnstile
- Design: Vertical compact design
- Material: SUS304 stainless steel
- Color: Silver-gray
- Lane Type: Single lane
- Movement: Bi-directional rotating barrier
- Authentication Support: Fingerprint / RFID
- Protection Rating: IPX4
- Function: Pedestrian access control

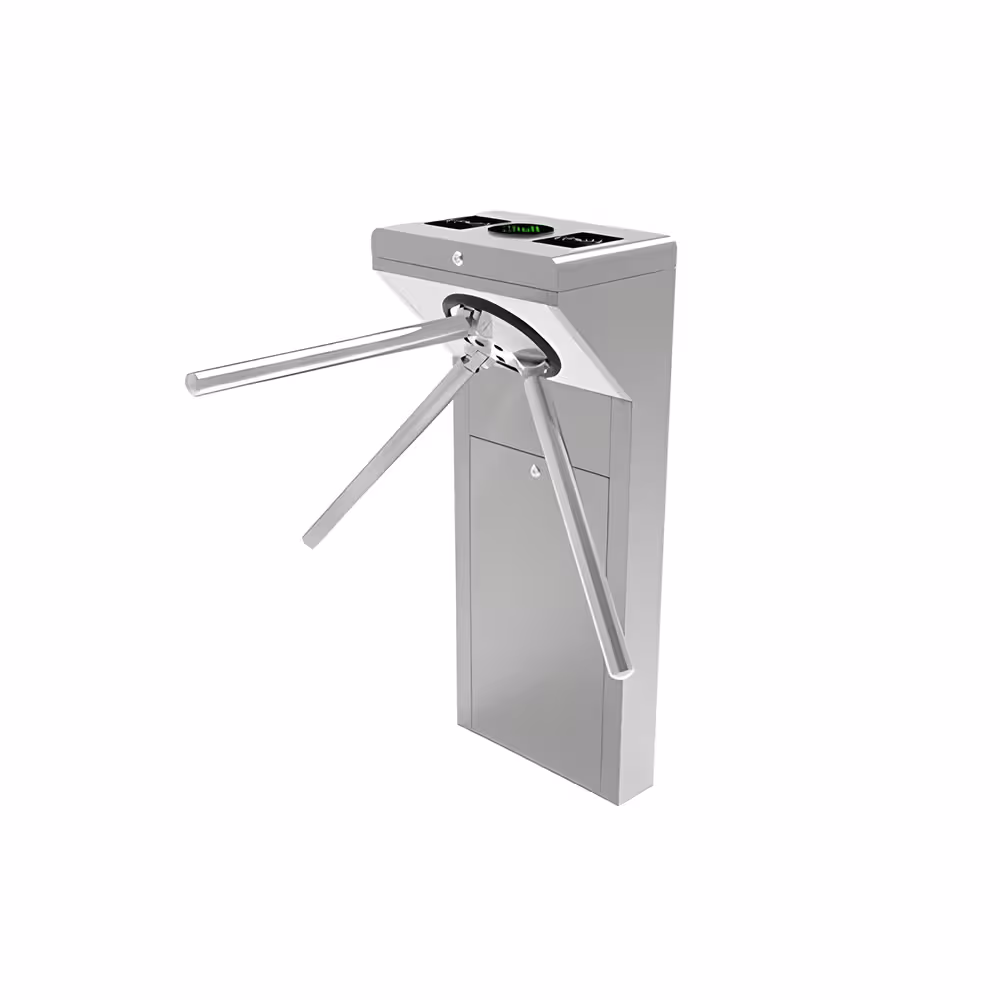

ZKTeco TS1000 Plus Series Tripod Turnstile
The ZKTeco TS1000 Plus Series Tripod Turnstile is a compact and reliable pedestrian access control solution designed for offices, schools, museums, factories, gyms, and other controlled entry points. ZKTeco describes the TS1000 Plus Series as a vertical tripod turnstile with a compact design, built to save space while delivering smooth people flow control. The cabinet uses SUS304 stainless steel as standard material for durability and long service life.
ZKTeco TS1000 Plus Series Tripod Turnstile Built for dependable daily operation, the TS1000 Plus Series supports bi-directional movement as standard and includes an automatic drop-arm function during power loss or emergency signal input for safer evacuation. Official specifications also list single-lane operation, RFID or fingerprint authentication support, IPX4 protection, and a throughput of up to 25 passengers per minute for RFID or 20 passengers per minute for fingerprint.
| Specification | Details |
|---|---|
| Brand | ZKTeco |
| Model | TS1000 Plus Series |
| Device Type | Tripod Turnstile |
| Design | Vertical Compact Design |
| Lane Type | Single Lane |
| Material | SUS304 Stainless Steel |
| Chassis Color | Silver-Gray |
| Barrier Movement Type | Rotating |
| Lane Width | 550 mm |
| Barrier Width | 500 mm |
| Authentication Methods | Fingerprint / RFID |
| Communication | Fire Alarm Port (Relay) ×1, RS485 Port ×1 |
| Power Supply | 110V / 220V AC, 50/60Hz, DC 12V |
| Power Rating | 10VA (Standby), 40VA (Operation) |
| Throughput Rate | RFID: 25 Passengers/Minute, Fingerprint: 20 Passengers/Minute |
| Ingress Protection | IPX4 |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0% to 85% RH (Non-condensing) |
| Dimensions (L×W×H) | 780 × 750 × 1000 mm |
| Net Weight | 20 kg |
| MCBF | 2 Million |
| Safety Feature | Automatic Drop Arm During Power Off or Fire Alarm |
| Security Feature | Anti-tailgating |
| Application Environment | Indoor / Outdoor (If Sheltered) |
